Beckhoff EL5151 | Beckhoff Ethercat Terminals

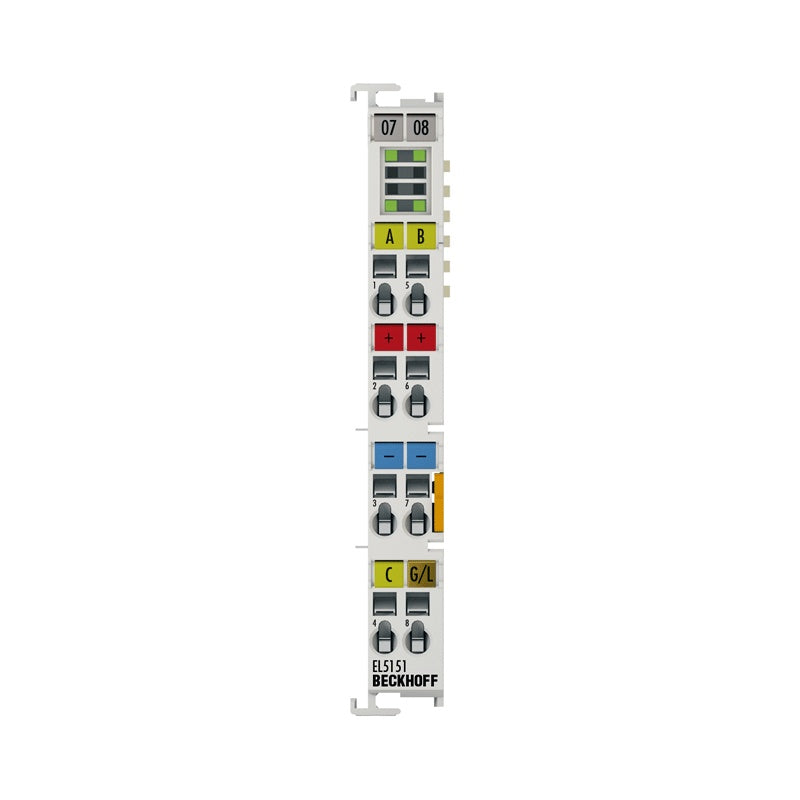

EL5151 | EtherCAT Terminal, 1-channel encoder interface, incremental, 24 V DC HTL, 100 kHz

The EL5151 EtherCAT Terminal is an interface for the direct connection of one incremental encoder (24 V HTL). An additional 24 V digital input is available...

Technical Specifications

EL5151 Technology incremental encoder interface, HTL 24 V DC Number of channels 1 Encoder connection 1 x A, B, C: 24 V DC, single-ended connection, EN 61131-2, type 1, “0”: 15 V DC, typ. 5 mA Additional inputs latch/gate input, 24 V DC Encoder operating voltage 24 V DC (-15%/+20%), (generated from the 24 V DC power contacts) Counter 1 x 16/32 bit switchable Cut-off frequency 400,000 increments/s (with 4-fold evaluation), corresponding to 100 kHz Quadrature decoder 4-fold evaluation Distributed clocks yes Nominal voltage 24 V DC (-15%/+20%) Resolution 1/256 bit microincrements Current consumption power contacts typ. 100 mA + load Current consumption E-bus typ. 130 mA Special features gate or latch function, microincrements, timestamping of edges, period duration and frequency measurement, up/down counters Weight approx. 50 g Operating temperature -25…+60°C Storage temperature -40…+85°C Re
