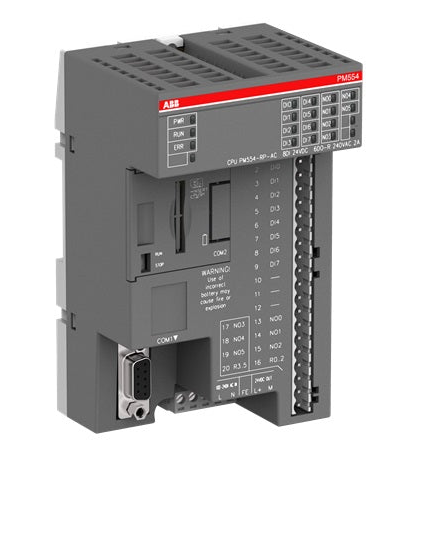

ABB PM554-RP-AC: AC500-eCo Series PLC CPU Module
AC500 Series: ABB's Flagship PLC Platform
The ABB AC500 series PLC represents ABB's flagship industrial control platform, renowned for high performance, exceptional reliability, and flexible expansion capabilities. The PM554-RP-AC, part of the AC500-eCo economy series, provides a cost-effective CPU module for small to medium automation projects without compromising on essential features.
PM554-RP-AC Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 1SAP120800R0001 (PM554-RP-AC) |
| Power Supply | AC 100-240V |
| Program Memory | 128kB |
| Data Memory | 64kB |
| Built-in I/O | 8DI / 6DO (relay outputs) |
| Max I/O Expansion | Up to 10 expansion modules |
| Communication | RS-485 (Modbus), Ethernet |
| Programming Software | Automation Builder |
Core Performance Advantages
- Wide voltage power supply: AC 100-240V direct supply eliminates the need for an external DC power supply, simplifying control cabinet design and reducing component count.
- Built-in I/O: 8 digital inputs and 6 relay outputs meet the basic needs of small projects without requiring additional I/O modules — reducing system cost and wiring complexity.
- Ethernet communication: Built-in Ethernet port supports Modbus TCP and ABB-specific protocols, enabling easy integration with supervisory systems and remote monitoring.
- SD card support: SD card slot enables program backup, firmware updates, and data logging — simplifying maintenance and commissioning.
- Full IEC 61131-3 support: Programs can be written in all five standard languages: LD, FBD, ST, SFC, and IL — giving engineers maximum flexibility.
Typical Application Scenarios
- Small to medium machinery control: Packaging machines, labeling equipment, and material handling systems with moderate I/O requirements.
- Building automation (HVAC): Heating, ventilation, and air conditioning control with built-in scheduling and analog processing capabilities.
- Water treatment and pump stations: Multi-pump control with level monitoring, alternating operation, and alarm management.
- Material conveying systems: Conveyor coordination, zone control, and sorting logic with Ethernet-based supervisory integration.
- Packaging machinery: High-speed sequencing with relay outputs for pneumatic valve control and sensor monitoring.
Programming with Automation Builder
The PM554-RP-AC is programmed using ABB Automation Builder software, which provides a unified development environment for all IEC 61131-3 languages. Key features include:
- Integrated project management for hardware configuration and programming
- Online monitoring and debugging capabilities
- Comprehensive library of pre-built function blocks
- Simulation mode for testing without connected hardware
- Firmware update management through the same interface
Expansion Options
The PM554-RP-AC supports up to 10 expansion modules from the AC500-eCo range, including digital I/O modules, analog I/O modules, communication modules (PROFIBUS, CANopen), and specialty modules. This expansion capability ensures the platform can grow with your application requirements without replacing the CPU.
Frequently Asked Questions
What is the scan cycle time of the PM554-RP-AC?
The PM554-RP-AC has a typical scan cycle time of 2-5ms for a moderately sized program. This is fast enough for most discrete control applications including high-speed packaging machinery and material handling systems. For applications requiring sub-millisecond response, consider the AC500-PM590 or PM591 high-performance CPUs which offer significantly faster processing.
Can the PM554-RP-AC communicate with third-party devices?
Yes, the built-in Ethernet port supports Modbus TCP, making it compatible with virtually any industrial device that supports Modbus communication. The RS-485 port supports Modbus RTU for serial communication with drives, HMIs, and other devices. For PROFIBUS or PROFINET communication, add a dedicated communication module to the expansion bus.
How does the AC500-eCo differ from the standard AC500?
The AC500-eCo is the economy version of the AC500 platform. It offers the same programming environment (Automation Builder) and IEC 61131-3 language support but with reduced memory, fewer expansion slots (max 10 modules), and lower processing speed. For applications that do not require maximum performance, the eCo series provides an excellent price-to-performance ratio while maintaining ABB quality and reliability.
What happens to the program during power loss?
The PM554-RP-AC retains the program in non-volatile Flash memory — no battery is required for program retention. Retentive data (counters, timers, flags marked as retentive) is maintained by a supercapacitor for up to 200 hours. For applications requiring longer data retention, use an SD card for automatic data backup and restoration.
