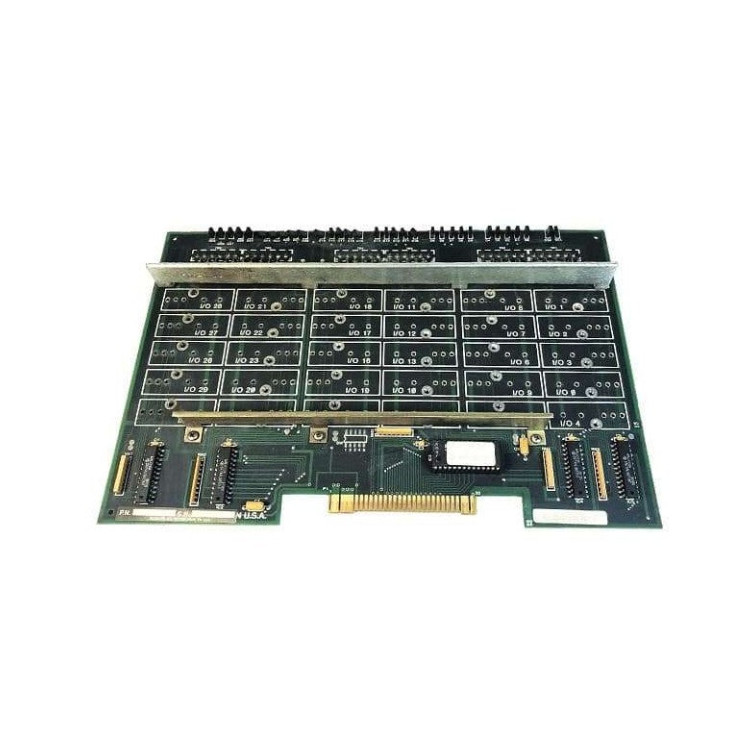

Schneider AS-B061-P00: Essential I/O Module for Modicon PLCs
The Overlooked Critical Component
In industrial automation systems, attention often focuses on PLCs, VFDs, and HMIs — the major components. Yet connectors, terminal modules, and bus adapters — the smaller components — are equally critical. The Schneider AS-B061-P00 is one such component: seemingly inconspicuous but indispensable for reliable system operation.
AS-B061-P00 Functional Overview
The AS-B061-P00 is an important interface module in Schneider's automation product lineup, primarily serving I/O expansion and system interconnection for Modicon series PLCs. It functions as a bridge, ensuring stable and reliable data communication between the main controller and expansion modules.
Key Technical Characteristics
- Modicon compatibility: Designed for seamless integration with Schneider Modicon M340, M580, and Premium PLC platforms.
- Backplane connectivity: Plugs directly into the PLC backplane bus, providing high-speed data exchange between the CPU and I/O modules.
- Hot-swap capability: Depending on the PLC platform, supports module replacement without powering down the system (verify platform-specific support).
- Diagnostic indicators: LED status indicators show module health, communication status, and fault conditions for rapid troubleshooting.
- Rugged construction: Industrial-grade components rated for harsh factory environments with vibration and electromagnetic interference.
Procurement and Usage Recommendations
- Verify compatibility: Before purchase, confirm the module is compatible with your specific PLC model and firmware version. Schneider product documentation provides detailed compatibility matrices.
- Note hardware version differences: The same model number may have different hardware revisions with slight functional variations. Check the revision label when ordering.
- Anti-static handling: Always wear an anti-static wristband during installation. Electronic modules are sensitive to ESD damage.
- Firmware updates: After installing a new module, check for and apply the latest firmware updates to ensure optimal performance and bug fixes.
- Spare parts strategy: For critical workstations, maintain at least one spare module of the same model for rapid replacement.
Common Troubleshooting
- Communication interruption: Check module LED indicators. A steady red light typically indicates self-test failure or hardware fault. Power-cycle the system after reseating the module.
- Module not recognized: Confirm the module is fully inserted into the backplane slot. Remove and reinsert firmly, then power-cycle. Verify the PLC configuration includes the module address.
- Intermittent faults: Often caused by oxidized or loose backplane connectors. Clean the connector gold contacts with approved contact cleaner and reseat the module.
- Configuration mismatch: Ensure the PLC project configuration matches the physical module type and address. Download the updated configuration after hardware changes.
Frequently Asked Questions
Which Modicon PLC models are compatible with AS-B061-P00?
The AS-B061-P00 is designed for Schneider Modicon M340 and Premium series PLC platforms. Always verify compatibility with your specific CPU model and firmware version before purchase. Schneider's product documentation provides detailed compatibility matrices, and Lianyou PLC technical support can assist with verification.
How can I tell if the module has failed?
Check the LED status indicators on the module front panel. A green LED indicates normal operation, while a red LED typically signals a hardware fault or communication error. If reseating the module and power-cycling the system does not resolve the issue, the module likely needs replacement. Always back up your PLC program before replacing any backplane module.
Are replacement modules plug-and-play or do they need configuration?
Replacement modules of the same model and revision are generally plug-and-play — the PLC configuration already contains the module definition. However, if the replacement module has a different hardware revision, firmware updates or configuration changes may be required. After installation, verify that the PLC recognizes the module and all I/O functions correctly before returning to production.
Shop Schneider Modicon Components
Lianyou PLC supplies Schneider Modicon series PLC modules, accessories, and connection cables. All products are factory-tested with worldwide shipping.
