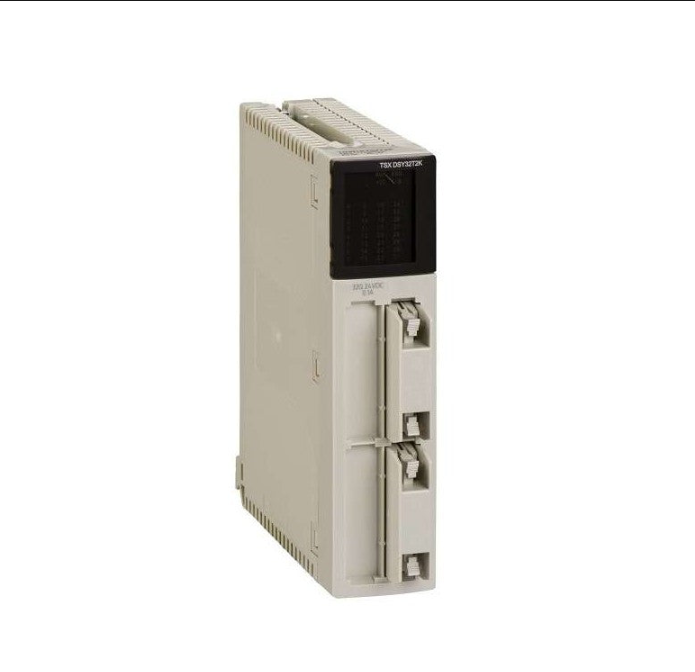

Schneider TSXDSY64T2KC: High-Density Digital Output Module
Output Modules: The Bridge Between PLC and Field Devices
PLC output modules are the critical interface between control systems and field actuators. The Schneider TSXDSY64T2KC is a high-performance digital output module designed for Modicon Premium and Quantum series PLCs, delivering reliable signal output capability for demanding industrial environments.
TSXDSY64T2KC Technical Specifications
| Parameter | Specification |
|---|---|
| Output Points | 64 (transistor output) |
| Output Type | Source (sourcing) |
| Output Voltage | DC 24V |
| Max Current Per Point | 0.5A |
| Max Current Per Group | 4A |
| Isolation | Optocoupler isolation |
| Connection Method | HE10 connector |
Advantages of High-Density Output
- Space savings: 64 output points integrated into a single module dramatically reduce control cabinet footprint compared to multiple lower-density modules.
- Lower total cost: A single high-density module costs less than multiple low-density modules plus additional backplane slots and wiring.
- Simplified wiring: HE10 connectors and prefabricated molded cables enable fast, error-free field wiring.
- Centralized management: Concentrated output management simplifies program development and fault diagnosis.
Selection and Wiring Recommendations
- Verify output polarity: The TSXDSY64T2KC is a sourcing output module — it must be matched with sinking input loads. Verify your field devices accept source-type outputs.
- Use TELEFAST pre-wiring system: Schneider TELEFAST terminal blocks provide organized, reliable field wiring connections without individual wire terminations.
- Ensure adequate ventilation: With 64 points at full load, heat generation is significant. Maintain proper control cabinet airflow and consider forced cooling for dense installations.
- Add fuses per group: Install fuses on each output group to protect against short circuits that could damage the module. Size fuses according to the 4A per group specification.
- Plan cable routing: Use shielded cables for output wiring in noisy environments. Route signal cables away from power cables to minimize electromagnetic interference.
Typical Application Scenarios
- Automated assembly lines with many pneumatic solenoid valves
- Packaging machinery with high-speed actuator control
- Material handling systems with multiple conveyor zones
- Process plants requiring distributed digital signal control
- Test equipment and inspection stations with numerous indicator outputs
Frequently Asked Questions
What is the difference between sourcing and sinking outputs?
Sourcing (source-type) outputs supply positive voltage to the load — current flows from the module through the load to ground. Sinking outputs switch the ground path — current flows from the positive supply through the load into the module. The TSXDSY64T2KC is a sourcing output module, so it must be paired with loads that accept positive switching. Always verify output type compatibility before installation.
How do I protect the module from output short circuits?
Install fuses on each output group (4A maximum per group). Use fast-blow fuses rated for DC applications. For critical outputs, consider individual fusing per point. Additionally, the module includes optocoupler isolation that protects internal circuitry from field-side faults, but fuses prevent damage from sustained short-circuit conditions.
Can I mix AC and DC loads on the same module?
No, the TSXDSY64T2KC is a DC 24V transistor output module designed exclusively for DC loads. For AC loads, use a relay output module or interposing relays. Mixing AC and DC on the same module can cause module failure and pose safety risks.
