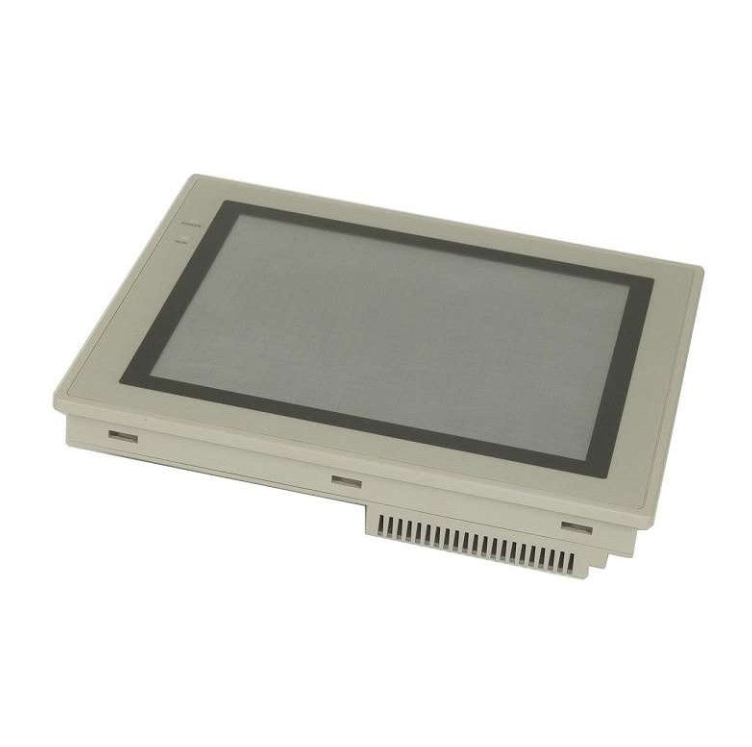

Omron NT31-ST123-EV3 HMI: A Comprehensive Guide
The Role of HMI in Industrial Automation
In smart factories, Human-Machine Interface (HMI) systems serve as the critical bridge between operators and machines. A quality HMI does more than display real-time data — it empowers operators to make fast, accurate decisions during emergencies. The Omron NT31-ST123-EV3 is a proven industrial-grade touchscreen HMI that continues to power production lines worldwide with reliable performance.
NT31-ST123-EV3 Core Technical Specifications
| Parameter | Specification |
|---|---|
| Display Size | 5.7-inch STN color LCD |
| Resolution | 320 x 240 pixels (QVGA) |
| Touch Type | Analog resistive touchscreen |
| Communication Interface | RS-232C with Host Link / NT Link protocol |
| Memory | Built-in Flash memory |
| Power Supply | DC 24V |
| Front Panel Rating | IP65 (dust and water resistant) |
Typical Application Scenarios
The NT31 series is widely deployed in small to medium-sized equipment control systems, including:
- Packaging machinery and labeling equipment
- Injection molding machines
- Food processing and packaging lines
- Small assembly line control stations
- Material handling and conveyor systems
Its compact 5.7-inch display is particularly practical for control cabinets with limited panel space. The NT31 performs best when paired with Omron C-series and CS1-series PLCs, offering seamless communication and responsive operation.
Selection and Purchasing Considerations
- Verify communication protocol compatibility: The NT31 supports NT Link and Host Link protocols — confirm compatibility with your specific PLC model before purchase.
- Check backlight condition: CCFL backlights typically last approximately 50,000 hours. If the screen appears dim, consider replacing the backlight tube or upgrading to an LED-backlit model.
- Confirm power supply stability: A stable DC 24V power source is essential. Voltage fluctuations can cause touch calibration drift or system resets.
- Maintain spare units: For critical workstations, keep a spare HMI of the same model to ensure 30-minute replacement capability during failures.
Common Troubleshooting Guide
- Unresponsive touchscreen: Check for oil contamination or scratches on the surface. Resistive touchscreens are sensitive to surface damage. If cleaning does not resolve the issue, the touch panel may need replacement due to aging.
- Communication interruption: Inspect RS-232C cable connections and verify that baud rate and communication parameters match the PLC configuration.
Screen flickering: Usually caused by unstable power supply or aging backlight inverter. Check power voltage stability first, then inspect the inverter circuit. Frequently Asked Questions
Is the Omron NT31-ST123-EV3 still supported?
While the NT31 series has been succeeded by newer HMI models, it remains in active service across thousands of installations worldwide. Omron continues to provide technical documentation, and replacement units are available through industrial automation distributors like Lianyou PLC. For new installations, consider upgrading to the Omron NA series for Ethernet connectivity and advanced features.
Can I migrate NT31 screen projects to a newer HMI?
Yes, Omron provides migration tools within CX-Designer and Sysmac Studio that can import NT-series screen projects. Some manual adjustments may be required for communication settings and address mappings, but the overall screen layout and logic can be transferred to NA-series HMIs.
What is the typical lifespan of an NT31 HMI?
With proper maintenance and environmental control, NT31 HMIs commonly operate for 10-15 years. The most frequent failure point is the CCFL backlight (50,000-hour rated life). Touch panel degradation is the second most common issue, particularly in environments with heavy contamination or frequent operator interaction.
