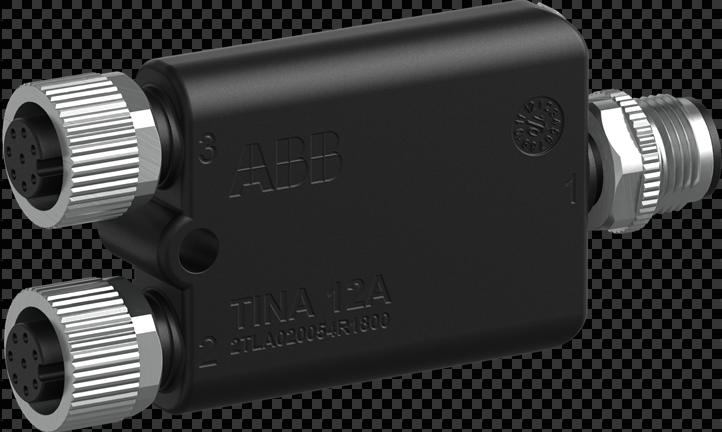

ABB Tina 12A Safety Relay: Connectivity in Industrial Automation
Safe Connections Are Non-Negotiable
In industrial automation safety systems, safety relays form the critical link between safety sensors and actuators. The ABB Tina 12A (2TLA020054R1800) is an important member of ABB's safety product lineup, providing reliable dual-channel safety monitoring for a wide range of safety applications.
Technical Highlights
- Dual-channel redundant design: Two independent safety channels operate simultaneously. A single-channel fault does not compromise safety functionality — the relay maintains safe operation until the fault is resolved.
- Cross-fault detection: Automatically detects short circuits or signal cross-talk between the two channels, ensuring safety integrity is maintained at all times.
- Flexible reset modes: Choose between manual or automatic reset based on application requirements and safety level demands. Manual reset is recommended for high-risk applications.
- LED status indication: Clear visual indicators display power supply status, channel conditions, and output states — enabling rapid on-site diagnostics without test equipment.
- Space-efficient design: At just 22.5mm wide, the Tina 12A minimizes control cabinet space requirements while delivering full safety relay functionality.
Integration with ABB Safety Light Curtains
The Tina 12A is an ideal partner for ABB Orion series safety light curtains. The light curtain's OSSD (Output Signal Switching Device) outputs connect directly to the Tina 12A input channels. When the light curtain beam is interrupted:
- The light curtain sends a stop signal via OSSD outputs
- The Tina 12A processes the signal within milliseconds
- Safety output contacts open, disconnecting power to hazardous motion
- The system remains in safe state until manual or automatic reset
The total response time — from beam interruption to output disconnection — typically falls within 10-20ms, far exceeding international safety standard requirements for Category 4 and SIL 3 applications.
Practical Wiring Considerations
- Dedicated safety wiring: Route safety circuit wiring separately from general control wiring to prevent electromagnetic interference and reduce fault risks.
- Proper cable selection: Use shielded cables for safety sensor connections in noisy industrial environments. Ground cable shields at one end only.
- Terminal torque verification: After wiring, verify all terminal screws are torqued to specification. Loose connections cause intermittent faults that are difficult to diagnose.
- Documentation: Maintain detailed wiring diagrams and safety function test records for compliance auditing and future maintenance.
Common Safety Applications
- Press machine safety circuits with light curtain protection
- Robotic work cell safety door monitoring
- Emergency stop circuits for conveyor and material handling systems
- Two-hand control device monitoring for presses and cutting equipment
- Safety mat and safety edge monitoring for automated guided vehicles
Frequently Asked Questions
What is the response time of the Tina 12A safety relay?
The Tina 12A has a maximum response time of less than 20ms from input signal to output disconnection. When combined with ABB Orion safety light curtains (typical response time 5-10ms), the total system response time is 10-20ms — well within the requirements of PL e / Cat. 4 / SIL 3 safety standards. Always calculate total system response time including sensor, relay, and final element delays.
What happens if one safety channel fails?
The dual-channel redundant design means that if one channel fails, the safety function is still maintained through the second channel. The Tina 12A will detect the channel fault and prevent automatic reset until the fault is cleared. This ensures that a single fault does not lead to loss of safety functionality — a fundamental requirement of Category 4 safety systems.
Can the Tina 12A be used with non-ABB safety sensors?
Yes, the Tina 12A can be used with any safety sensor that provides dual-channel OSSD outputs or dual mechanical contacts meeting the safety level requirements. This includes safety light curtains, safety door switches, emergency stop buttons, and safety mats from various manufacturers. Always verify that the sensor output characteristics match the Tina 12A input specifications.
What wire size should I use for safety circuit wiring?
Use minimum 0.75mm² (18 AWG) copper wire for safety circuit connections. For longer cable runs exceeding 50 meters, increase wire size to 1.0mm² or 1.5mm² to minimize voltage drop. Always route safety wiring in dedicated conduits separate from power wiring to prevent electromagnetic interference.
