ABB CL-LDD.K Display Module: Visual Control for Logic Modules
Visualizing Logic Module Operations

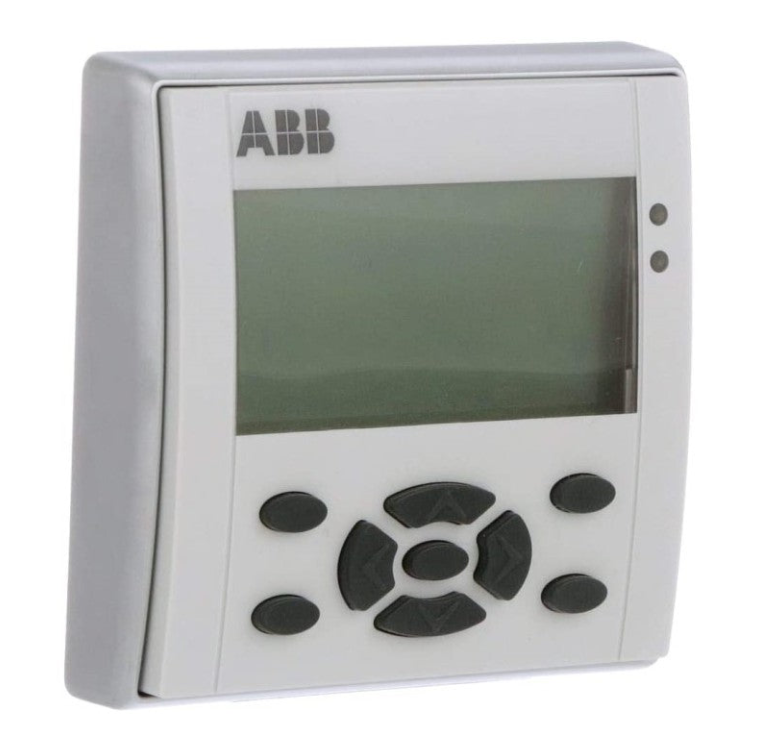

In small-scale automation projects, the ability to monitor and adjust logic module parameters in real-time is invaluable. The ABB CL-LDD.K (1SVR440839R4400) is a dedicated display and keyboard accessory designed for ABB CL-series logic modules, enabling operators to visualize program status, modify parameters, and troubleshoot without a computer connection.
CL-LDD.K Key Features
- Backlit LCD display: Clear visibility of input/output states, timer values, and counter readings in various lighting conditions.
- Integrated keypad: Four navigation buttons allow parameter adjustment and screen navigation directly at the control panel.
- Plug-and-play installation: Connects directly to the CL-series logic module via standard ribbon cable — no configuration required.
- Password protection: Prevents unauthorized parameter changes in production environments.
- Compact form factor: Designed for DIN-rail mounting alongside the logic module, minimizing cabinet space requirements.
Installation and Setup
- Power off the logic module: Always disconnect power before connecting the display module to prevent damage.
- Connect the ribbon cable: Align the cable connector with the module port, ensuring proper orientation. The connector is keyed to prevent reverse insertion.
- Mount in control panel: The display module can be mounted on the DIN rail next to the logic module or in a panel cutout for operator access.
- Power on and verify: After power-up, the display should show the default status screen. Navigate through menus to verify all functions are accessible.
- Set password protection: Configure access levels to prevent unauthorized changes to critical parameters.
Practical Application Value
The CL-LDD.K transforms how operators interact with ABB logic modules. Instead of connecting a laptop with CL-SOFT programming software, maintenance personnel can:
- Monitor real-time I/O status at a glance
- Adjust timer and counter setpoints without programming software
- View alarm history and diagnostic messages
- Override outputs for testing and commissioning
- Display custom operator messages and process values
For pump station control, lighting management, and small packaging machine applications, this display module eliminates the need for a dedicated HMI, reducing overall system cost while maintaining operational visibility.
Compatibility Notes
The CL-LDD.K is compatible with ABB CL-series logic modules including CL-LSR, CL-LMR, and CL-LER variants. Ensure your logic module firmware supports the display module before purchase. The display draws minimal power from the logic module supply, requiring no additional power source.
Frequently Asked Questions
Can the CL-LDD.K display be used with any ABB logic module?
The CL-LDD.K is compatible with ABB CL-series logic modules including CL-LSR, CL-LMR, and CL-LER variants. However, firmware compatibility must be verified before purchase — older firmware versions may not support all display functions. Check the ABB product documentation or contact technical support to confirm compatibility with your specific module.
Does the display module require a separate power supply?
No, the CL-LDD.K draws power directly from the logic module through the ribbon cable connection. The power consumption is minimal and does not affect the logic module performance. This plug-and-play design eliminates the need for additional wiring or power supply planning.
Can the display show custom messages?
Yes, the CL-LDD.K supports custom text messages programmed through CL-SOFT. You can display operator instructions, alarm messages, process values, and system status information. Messages can be triggered by specific input conditions or timer events, providing contextual information to operators.
