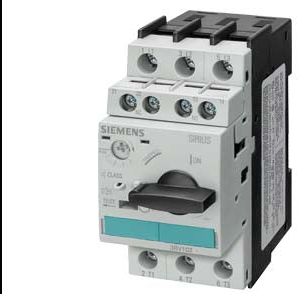

Siemens 3RV1021-1JA15: Motor Protection Circuit Breaker Guide
Why Motor Protection Circuit Breakers Matter
In industrial automation systems, electric motors are the most critical actuators. A motor failure due to overload or short circuit can mean thousands of dollars in repair costs and hours of production line downtime. The Siemens SIRIUS 3RV series motor protection circuit breaker provides precise, reliable protection for your equipment — and the 3RV1021-1JA15 is a versatile model designed for a wide range of motor applications.
3RV1021-1JA15 Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 3RV1021-1JA15 |
| Product Series | SIRIUS 3RV2 |
| Rated Current Range | 7-10A (adjustable) |
| Breaking Capacity | 100kA @ 400V AC |
| Poles | 3-pole |
| Mounting | DIN rail mounting |
| Auxiliary Contacts | Optional 1NO + 1NC |
| Certifications | CE, UL, CCC |
Key Functional Features
- Electronic overload protection: Thermal memory function simulates motor temperature rise curves, providing accurate protection even with frequent start-stop cycles.
- Instantaneous short-circuit tripping: When short-circuit current reaches 12-14x the set value, the breaker disconnects within 10ms.
- Phase-loss protection: Automatic tripping when any phase is missing, preventing motor damage from single-phase operation.
- Trip indication: Mechanical trip indicator window provides at-a-glance status verification.
Typical Application Scenarios
- Fan and pump motor protection
- Conveyor belts and elevators in continuous-duty applications
- Machine tool spindle motor protection
- Compressors and refrigeration equipment
- Automated production line drive units
Installation and Commissioning Guidelines
- Set the correct current value: Adjust the dial to the motor nameplate rated current. For star-delta starting motors, set to 0.58x rated current.
- Ensure adequate cooling: Maintain at least 30mm clearance around the breaker. Derate when mounting multiple units side by side.
- Test trip function regularly: Use the test button every 6 months to verify the tripping mechanism operates correctly.
- Check terminal torque: Main circuit terminal screws must be torqued to specification — loose connections cause heating and false tripping.
Why Choose 3RV Series Over Standard Miniature Breakers?
Standard MCBs are designed for cable protection, not motor protection. The 3RV series features trip curves precisely matched to motor thermal characteristics, built-in phase-loss protection, ambient temperature compensation (-20 to +60 degrees C), and optional auxiliary contacts for remote monitoring — all essential for industrial motor protection.
Frequently Asked Questions
Can the 3RV1021-1JA15 be used with variable frequency drives?
When using a VFD, motor protection is typically handled by the drive itself. However, the 3RV1021-1JA15 can still serve as a short-circuit protection device and disconnecting means upstream of the VFD. In this configuration, set the current range to match the VFD input rating, not the motor full-load current.
What is the difference between Class 10 and Class 20 trip ratings?
Class 10 trips at 10x rated current within 4-10 seconds, suitable for standard motors with normal starting times. Class 20 allows 20 seconds, designed for heavy-start applications like centrifuges or high-inertia loads. The 3RV1021-1JA15 uses Class 10, appropriate for most standard motor applications.
How do I wire auxiliary contacts for remote monitoring?
The 3RV1021-1JA15 supports snap-on auxiliary contact blocks (1NO+1NC or 2NO+2NC). Wire the NO contact to a PLC digital input for running status, and the NC contact to an alarm input for trip indication. Auxiliary contacts are rated for AC-15 and DC-13 switching duty.
