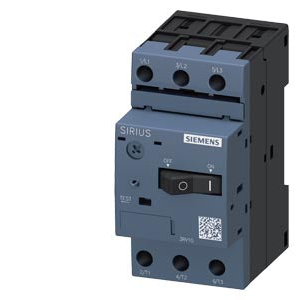

Siemens 3RV1011-1GA10: Compact Motor Protection Breaker
Small Motors Need Professional Protection Too
Never underestimate the importance of motor protection based on size alone. A burned-out 0.55kW conveyor motor can halt an entire assembly line just as effectively as a failed 50kW motor. The Siemens SIRIUS 3RV1011-1GA10 is designed for small motors in the 0.5-3kW range, delivering professional motor protection at an economical price point.
3RV1011-1GA10 Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 3RV1011-1GA10 |
| Rated Current Range | 4.5-6.3A (adjustable) |
| Breaking Capacity | 100kA @ 400V AC |
| Poles | 3-pole |
| Size | S00 (45mm width) |
| Mounting | DIN rail mounting |
| Trip Class | CLASS 10 |
Why Choose 3RV Series Over Standard Miniature Breakers?
Standard miniature circuit breakers (MCBs) are designed for cable protection, not motor protection. This fundamental difference has significant practical implications:
- Precise overload protection: Standard MCB overload curves are designed for cable protection, not motor protection. The 3RV series trip curves are precisely matched to motor thermal characteristics, providing accurate protection across the operating range.
- Phase-loss protection: Standard MCBs offer no phase-loss protection. The 3RV series includes a built-in differential trip mechanism that automatically disconnects when a phase is lost, preventing motor burnout from single-phase operation.
- Temperature compensation: The 3RV series features built-in ambient temperature compensation, maintaining protection accuracy across the -20 to +60 degrees C operating range. Standard MCBs do not offer this capability.
- Auxiliary contacts: Add auxiliary contacts and trip alarm contacts for remote monitoring integration — not possible with most standard MCBs.
Typical Applications
- Small conveyor belt motors (0.5-3kW)
- Fan and blower motors in HVAC systems
- Pump motors in water treatment and circulation systems
- Small machine tool auxiliary motors
- Packaging equipment drive motors
- Laboratory and test equipment motor protection
Installation and Sizing Guide
- Match to motor full-load current: Set the adjustment dial to the motor nameplate full-load current value. The 4.5-6.3A range covers motors drawing approximately 4.5-6.3A at rated load.
- Consider starting method: For star-delta starting, set the current to 0.58x rated current. For direct-on-line starting, set to rated current.
- Verify coordination: Ensure proper coordination with upstream short-circuit protection devices (fuses or circuit breakers) per IEC 60947-4-1 coordination types (Type 1 or Type 2).
- Allow clearance: Maintain minimum 30mm clearance above and below for heat dissipation, especially when mounting multiple units.
Frequently Asked Questions
What motor power range does the 3RV1011-1GA10 cover?
With its 4.5-6.3A adjustable current range, the 3RV1011-1GA10 is suitable for three-phase motors rated approximately 1.5-3kW at 400V AC. This covers common small motor applications including conveyor drives, small pumps, fans, and auxiliary equipment motors in industrial machinery.
Can the 3RV1011-1GA10 be used as a main disconnect?
While the 3RV1011-1JA10 can disconnect motor power, it is designed as a motor protection device, not as a main disconnect switch. For compliance with electrical codes, install a separate lockable disconnect switch upstream of the motor branch circuit. The 3RV breaker provides overload and short-circuit protection, while the disconnect provides safe isolation for maintenance.
Does this breaker support manual motor starting?
Yes, the 3RV1011-1GA10 can be used as a manual motor starter by using the front rotary knob to start and stop the motor directly. For automatic control, add a contactor controlled by a PLC or pilot devices. The breaker knob provides local control and visual status indication regardless of the control method used.
